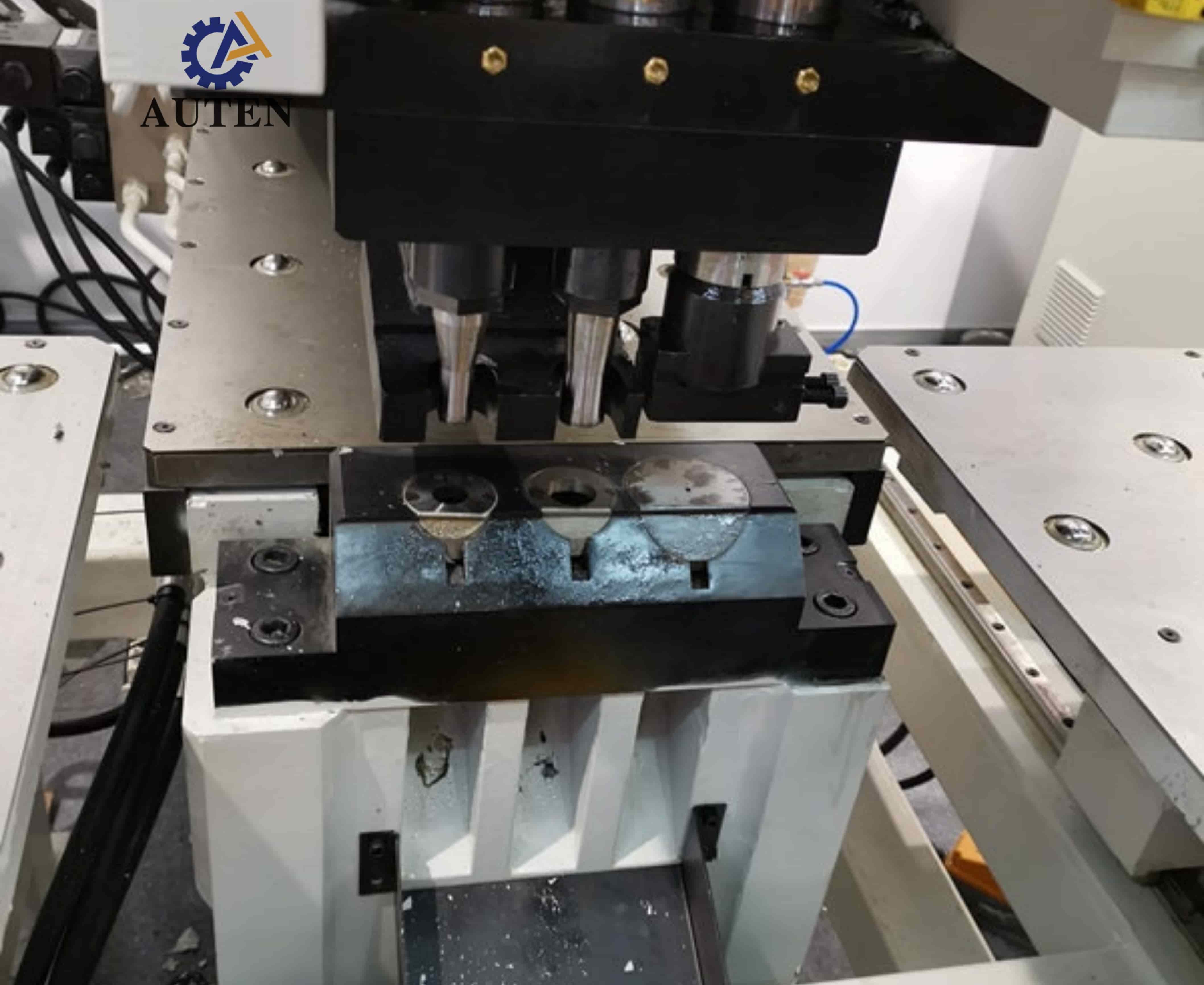

CNC Plate Punching Machine With 4 Die Stations For Industrial Metal Plate Processing
Product Introduction:
Plate punching machine is designed for punching, marking, and drilling steel plates used in transmission tower manufacturing. It is also suitable for punching, drilling, and marking metal plates for a wide range of other industrial applications.
Product specification:
| Model |
BNCZ100 |
| Max size of work piece (mm) |
1500*800 |
| Max. punching diameter (mm) |
Φ26 |
| Max. drilling diameter (mm) |
Φ50 |
| Taper of drilling spindle |
/ |
| Plate thickness (mm) |
Punching |
5～25 (Q235) |
| Drilling |
40 |
| Punching force (kN) |
1000/1200 |
| Marking force (kN) |
800/1200 |
| Min. distance between hole and plate edge (mm) |
Punching |
25 |
| Drilling |
Depends on hole diameter |
| Character size(mm) |
14*10*19 |
| Qty. of character |
12 |
| Die-stations |
4 |
| Feeding speed of drilling (mm/min) |
25~280 |
| Stroke of drilling spindle(mm) |
180 |
| Rotation speed of drilling spindle(r/min) |
120~560 |
| Programming mode |
Command programming, Auto CAD drawing or layout software |
| Overall dimensions L*W*H (m) |
3.2*3*2.6 |
Product Features:
1. The machine body adopts a C-type welded steel plate construction, providing high structural rigidity, excellent operational stability, and an expansive working area for convenient workpiece loading and handling. The equipment is configured with three automatic processing stations, including one dedicated marking station, and supports automatic station selection to optimize machining efficiency. The clamping system accommodates workpieces of different dimensions and specifications and is equipped with a zero-point reference stop for accurate positioning. A ball-transfer worktable facilitates smooth and flexible workpiece movement. The X- and Y-axis assemblies are servo-driven through precision ball screw mechanisms, while the PLC-based CNC control system accurately regulates punching positions to enable fully automated machining. Operators can create the required workpiece programs and store, retrieve, and reuse them for subsequent production operations.
2. The steel plate punching machine integrates advanced CNC control technology with a servo-controlled feeding system, delivering high production productivity, reliable operating performance, and stable machining accuracy throughout continuous production.
3. The principal functional assemblies adopt a modular structural configuration, facilitating routine servicing and component replacement while reducing maintenance time and minimizing equipment downtime.
4. The machine can perform punching, marking, and drilling operations on a single steel plate within one integrated machining cycle, substantially increasing production efficiency while reducing workpiece transfer operations and manual handling requirements.
5. The drilling unit incorporates rapid approach, controlled low-speed machining feed, and high-speed return functions, effectively shortening the machining cycle and enhancing overall equipment productivity.
6. The programming system is engineered for straightforward, efficient, and convenient operation. Operators can directly enter hole diameters, hole coordinates, and required production quantities into the CNC control system. The equipment also supports machining programs generated by professional lofting software and direct CAD/CAM data conversion, providing enhanced programming efficiency, operational flexibility, and adaptability to diverse production requirements.
7. An intelligent fault self-diagnostic system is integrated into the equipment to continuously monitor operating conditions, automatically identify abnormal states, and display corresponding fault information. This function facilitates rapid fault detection, troubleshooting, and maintenance, helping improve equipment availability and support reliable long-term operation.
This CNC plate punching machine is a specialized metalworking system engineered for integrated punching, marking, and drilling operations on steel plates used in the steel tower manufacturing industry. It delivers high machining precision while complying with stringent dimensional tolerance and surface finish requirements. In addition to its primary application in steel tower fabrication, the versatile equipment provides reliable punching, drilling, and marking capabilities for metal plates across a broad range of industrial applications. It maintains consistent processing accuracy and operational efficiency for various metal workpieces, helping streamline manufacturing workflows, improve production productivity, and enhance finished-product quality across diverse industrial sectors.
