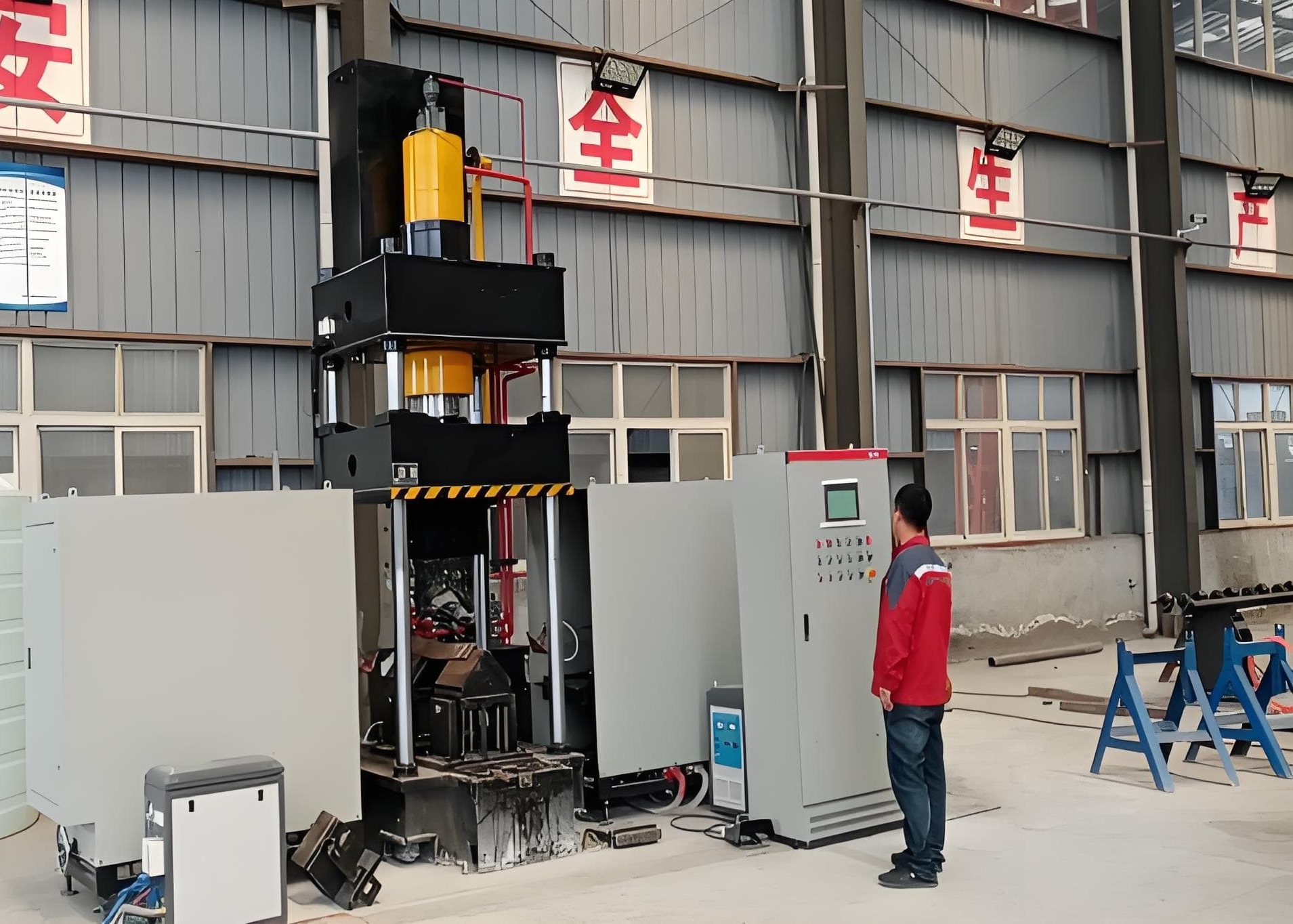

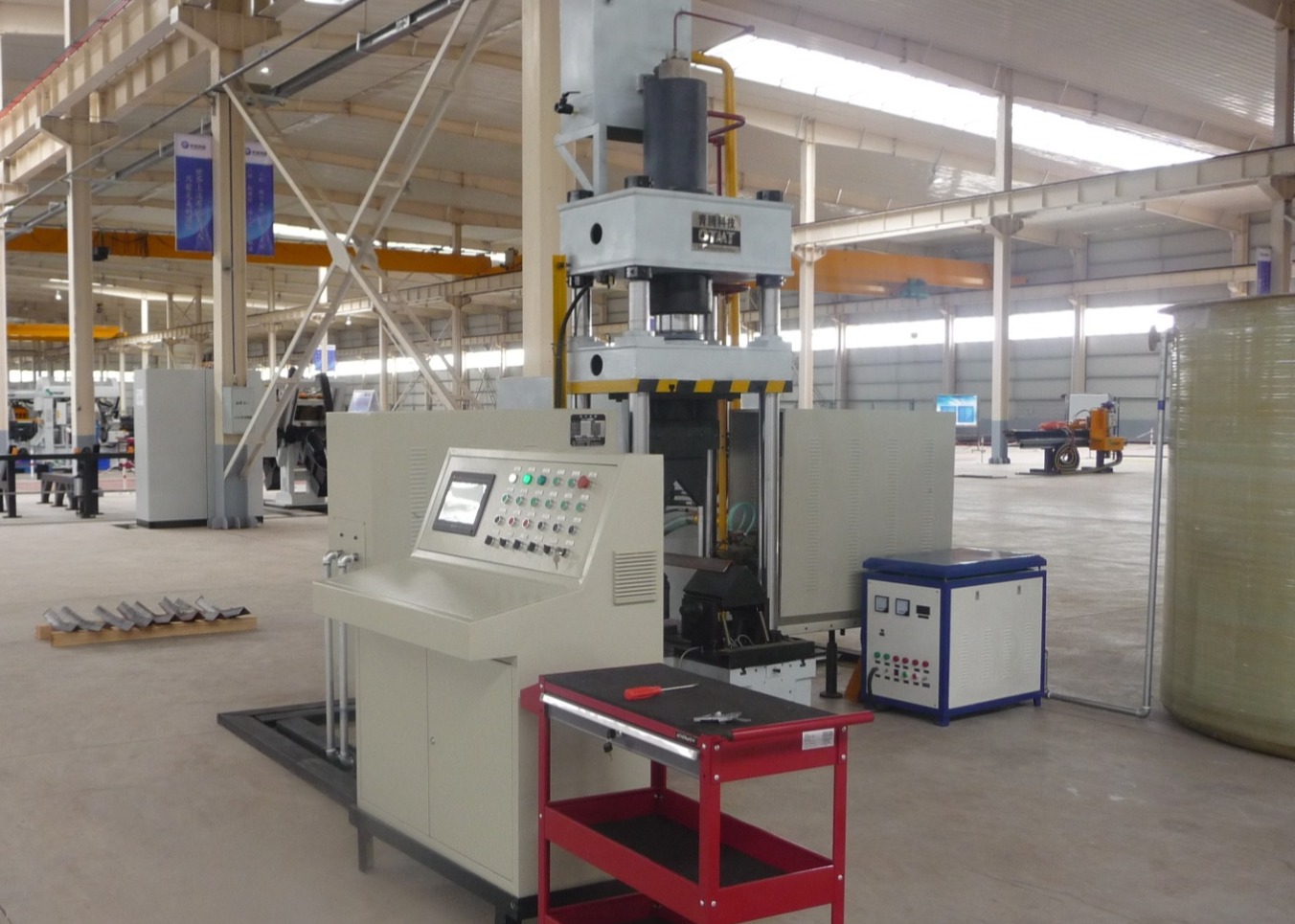

Hydraulic CNC Heating Bending Machine For Angle & Plate With High Capacity
Product Introduction:
Mainly used for angle steel bending and plate bending.
Product configuration:
| Model |
HQ360-900 |
| Oil Tank Pressure (kN) |
3150 |
| Outside double-sided bending size (Heel up ) (mm) |
L80*7~L360*40 |
| Outward double-sided bending degree for angles (°) |
30° |
| Angle steel forward single bending range (mm) |
L100*10~L300*30 |
| Angle steel forward single bending degree (°) |
20° |
| Bending Plate thickness (mm) |
2~20 |
| Bending Plate width (mm) |
900 |
| Bending degree for plates (°) |
90° |
| Angle opening & closing range (mm) |
L100*10~L300*30 |
| Angle opening & closing degree (°) |
16° |
| Oil Tank Stroke (mm) |
950 |
| Max.opening height (mm) |
1400 |
| Motor Power (kW) |
22 |
| Heating power (kW) |
120*2 |
| CNC Axis |
3 |
| Oil tank capacity (L) |
720 |
| Overall size (m) |
4.2x4.5x4.1 |
Product Features:
1. The machine is equipped with an advanced CNC control platform integrated with a touchscreen Human–Machine Interface (HMI), enabling convenient parameter setting, real-time process monitoring, and continuous equipment status display. This intelligent control system simplifies operation while improving production management and overall manufacturing efficiency.
2. The equipment incorporates high-efficiency ultrasonic induction heating technology, delivering rapid, energy-saving, and environmentally friendly heating performance. This advanced heating solution increases production capacity, lowers energy consumption, and supports sustainable industrial manufacturing.
3. Designed as a comprehensive multi-function forming system, the machine performs a variety of processing operations without requiring additional tooling or dedicated forming dies. This integrated design reduces setup time, minimizes tooling costs, and provides greater production flexibility.
4. Utilizing high-precision CNC positioning and motion control technology, the machine accurately regulates bending angles and forming dimensions, ensuring excellent product consistency, repeatable machining accuracy, and higher manufacturing productivity.
5. The equipment is fitted with an independent hydraulic power unit integrated with a complete electrical control system, delivering reliable operation, enhanced operational safety, simplified maintenance, and outstanding suitability for continuous industrial production.
6. The cold-forming capability is suitable for processing angle steel sections up to L100 × L100 × 10 mm, provided the required bending angle does not exceed 5°. This ensures accurate forming while maintaining superior dimensional precision and consistent product quality.
7. Under standard operating conditions, the average cold-forming cycle is approximately 10 seconds per workpiece, while thermal forming typically requires around 120 seconds, depending on material specifications and workpiece dimensions. Hot bending commences once the workpiece reaches approximately 800°C (red-hot condition), with heating parameters automatically optimized according to material properties and specified bending requirements.
8. During thermal forming operations, operators preset the required processing parameters and activate the automatic cycle using either the start button or a foot switch. The equipment then automatically performs the complete forming sequence, including induction heating unit positioning, controlled heating, automatic withdrawal of the heating assembly, hydraulic pressing, ram retraction, and finished workpiece unloading.
9. In the combined hot- and cold-forming mode, production begins immediately after the processing parameters have been entered. The hydraulic ram remains at its working position while the lower forming die automatically rises approximately 100 mm, allowing rapid removal of the finished workpiece, reducing cycle time, and significantly improving overall production efficiency.
The demonstration workpieces are produced by the*CNC Angle Steel Punching, Marking, and Cutting Production Line in accordance with the standard specifications and manufacturing practices widely adopted in the transmission tower industry. These representative samples allow customers, engineers, and quality inspectors to evaluate machining accuracy, dimensional precision, surface finish, and overall processing quality, clearly demonstrating the machine's capability to meet the demanding manufacturing requirements of transmission tower fabrication.
In Ultra-High-Voltage (UHV) power transmission projects, where transmission towers must withstand harsh environmental conditions and heavy structural loads throughout their operational lifespan, this equipment performs a critical manufacturing function. It accurately processes the angle steel components that form the primary load-bearing framework of transmission towers by carrying out high-precision drilling and punching on tower legs, cross-arms, and other essential structural members. The system ensures precise hole locations, reliable assembly accuracy, and outstanding dimensional consistency, thereby improving structural integrity, operational safety, and long-term service performance. As a result, it provides a highly dependable manufacturing solution for modern UHV transmission infrastructure and large-scale tower production.
